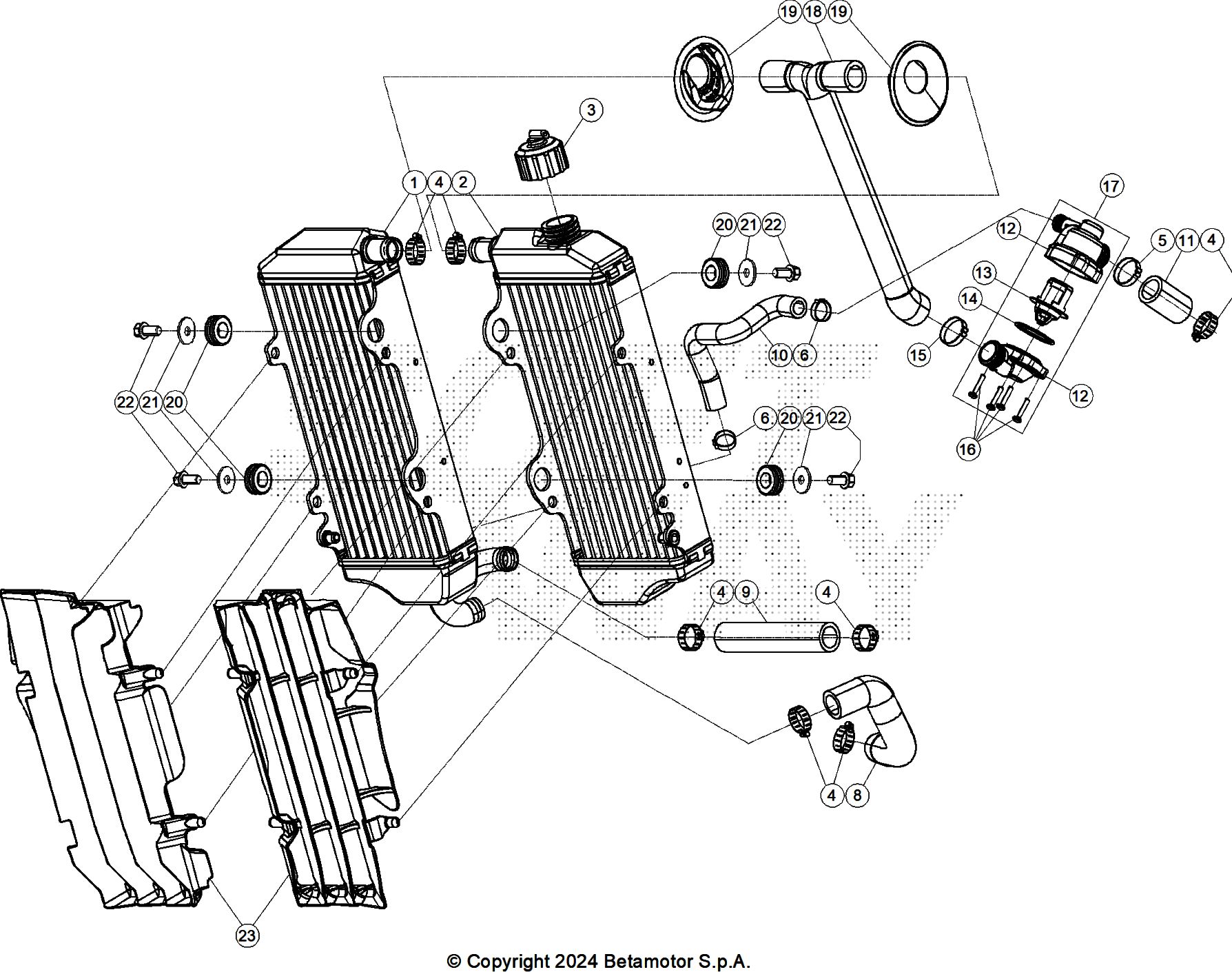

Drawing
Telaio > Sistema Di Raffreddamento

Valid for:

Rif.	Sku	Name	Price	Qty needed
4	15.15240.000	FASCETTA /27	2,78 €	7
5	C07.16.005.00.00	FASCETTA D25	1,98 €	1
6	020.39.009.00.00	FASCETTA AUTOAGGRAPPANTE	3,95 €	2
8	026.39.006.00.00	TUBO POMPA ACQUA	7,19 €	1
9	040.39.007.00.00	TUBO ACQUA RR 2T	4,54 €	1
10	040.39.008.00.00	TUBO ACQUA RR 2T	5,38 €	1
11	040.39.000.00.00	TUBO ACQUA RR 2T	1,90 €	1
13	026.39.013.00.00	TERMOSTATO AD INSERTO RR 2T	34,07 €	1
14	10.66830.000	ANELLO OR .2	1,44 €	1
15	C07.16.007.00.00	FASCETTA D26	1,93 €	1
16	C24.89.004.00.00	VITE 3,9X22 DIN7981-F	0,13 €	4
17	040.39.003.80.00	TERMOSTATO RR 2T	53,97 €	1
18	040.39.027.00.00	TUBO TERMOSTATO RR 2T	36,19 €	1
19	037.39.015.00.00	TAPPO	2,76 €	2
20	035.39.006.00.00	SILENT BLOCK	1,38 €	4
21	27.43250.000	RONDELLA 6.24	0,10 €	4
22	11.47015.000	BULLONE 6.12 RS CH 8	0,34 €	4
23	037.39.029.00.97	GRIGLIE RADIATORE COPPIA RED RR	16,51 €	1

To see all drawing, select a model
