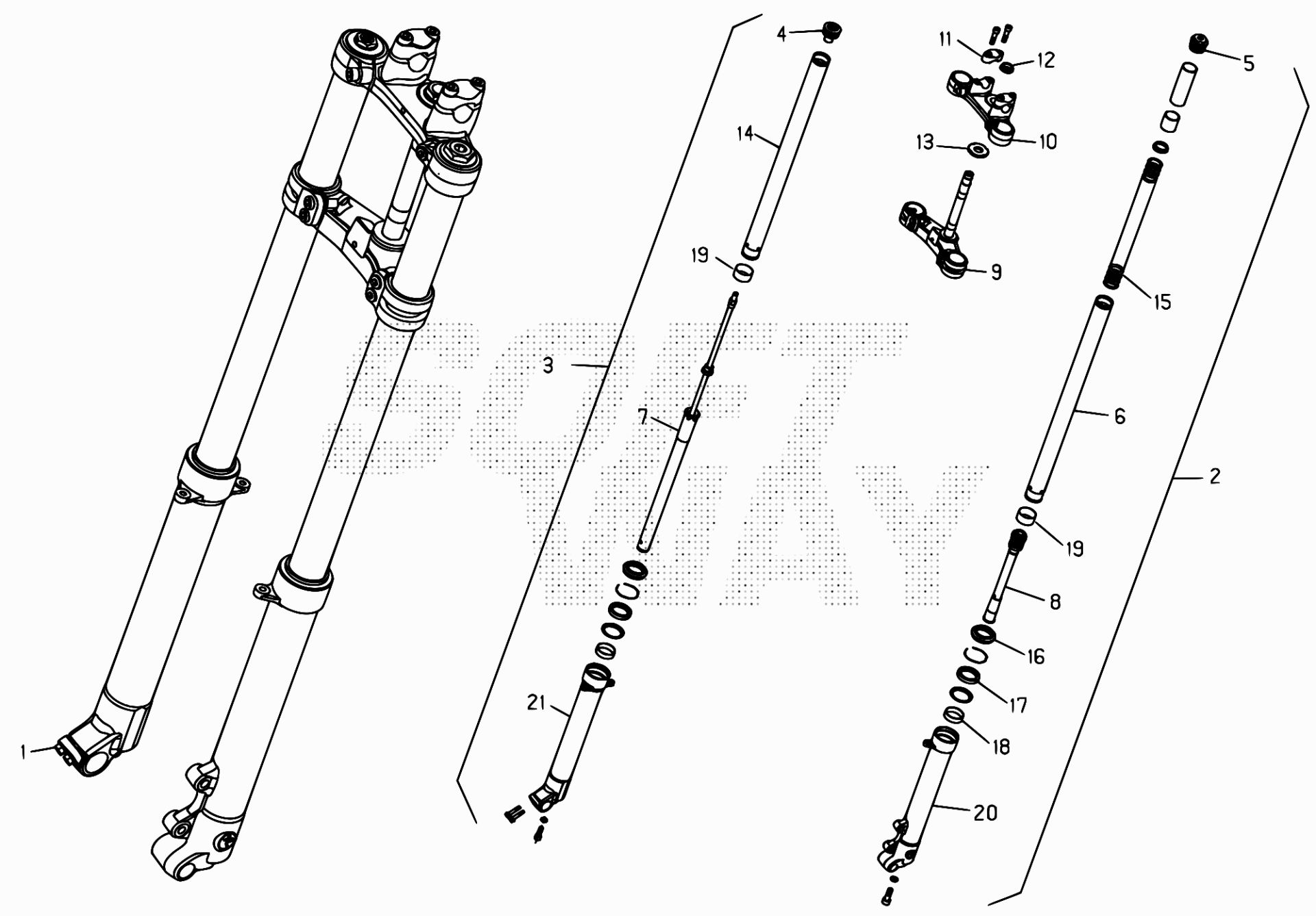

Drawing
Telaio > Forcella

Valid for:

Rif.	Sku	Name	Price	Qty needed
1	15.08049.000	FORCELLA REV 3 /200CC	1.320,37 €	1
3	16.00982.000	GAMBA DX COMPL.FORCELLA .08049	810,52 €	1
4	29.01962.000	TAPPO DX COMPL.FORCELLA .08045/6/7/8/9	77,09 €	1
5	29.01972.000	TAPPO SX COMPL.FORCELLA .08045/6/7/8/9	134,90 €	1
7	12.32978.000	CARTUCCIA IDRAUL.FORCELLA .08049	213,09 €	1
8	12.32979.000	CARTUCCIA MECC.FORCELLA .08049	40,59 €	1
9	12.09745.057	CROCIERA C/CANNOTTO FORCEL.1508052/49	232,12 €	1
10	29.50186.057	TESTATA FORCELLA .08049/52	148,74 €	1
12	007.34.005.00.00	DADO CANNOTTO FORCELLA EVO	14,58 €	1
15	22.52703.000	MOLLA FORCELLA (K 7,65 N/MM)	29,56 €	1
18	13.99940.000	D.U. GAMBA FORCELLA .0803	26,00 €	1
19	13.99930.000	D.U. TUBO FORCELLA .0803	24,38 €	1

To see all drawing, select a model
