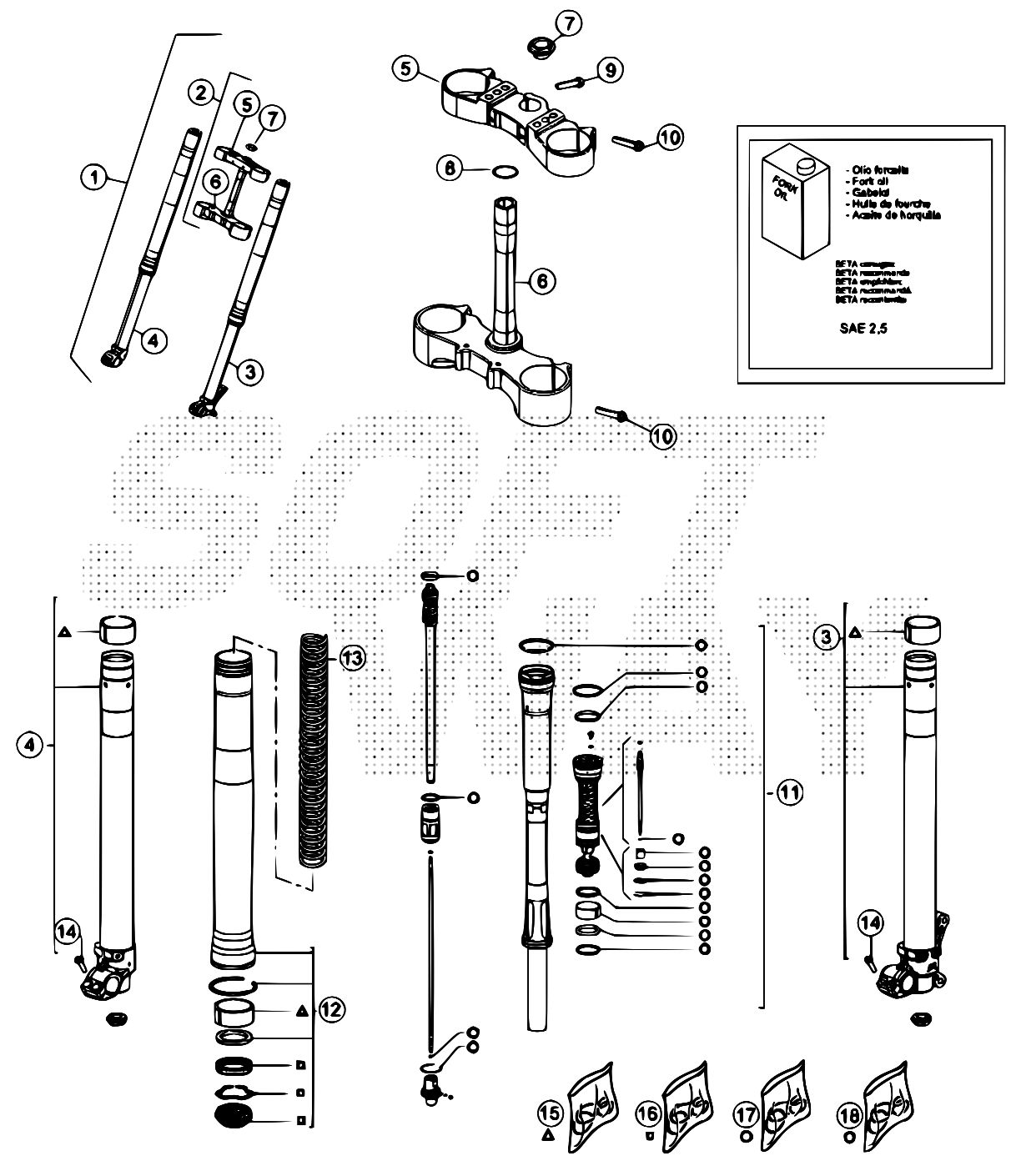

Drawing
Telaio > Forcella

Valid for:

Rif.	Sku	Name	Price	Qty needed
3	020.34.510.80.00	GAMBA SX CPL.FORCELLA D.48 RR4T FACTORY	1.346,18 €	1
4	020.34.530.80.00	GAMBA DX CPL.FORCELLA D.48 RR4T FACTORY	1.346,18 €	1
5	020.34.160.10.59	PIASTRA SUPERIORE	285,11 €	1
6	020.34.160.20.59	PIASTRA INFERIORE COMPL. ASSECANNOTTO	462,33 €	1
7	020.34.004.00.00	DADO 20X1,5 FORCELLA	17,35 €	1
8	10.66420.000	ANELLO OR ,22.3,53 NBR	0,59 €	1
9	11.55440.000	BULLONE 8.30 RS CH	0,84 €	1
10	11.55510.000	BULLONE 8.40 RS CH	1,96 €	1
11	020.34.512.80.00	CARTUCCIA (ASTA) FORCELLA D.48	924,31 €	1
12	020.34.513.80.00	GAMBA FORCELLA D.48	421,47 €	1
13	020.34.515.00.00	KIT MOLLE FORCELLA D.48 K4,8	135,76 €	1
14	11.50010.000	BULLONE 6.25 RS CH 8	0,41 €	1
15	020.34.516.00.00	KIT BOCCOLE FORC. D.48 RR4T FACTORY	56,12 €	1
16	020.34.517.00.00	KIT PARAOLI FORC. D.48 RR4T FACTORY	67,34 €	1
17	020.34.518.00.00	KIT RICAMBIO COMPRES. D.48 RR4T FACT.'12	89,80 €	1
18	020.34.519.00.00	KIT RICAMBIO TENUTA D.48 RR4TFACT.'12	28,06 €	1

To see all drawing, select a model
