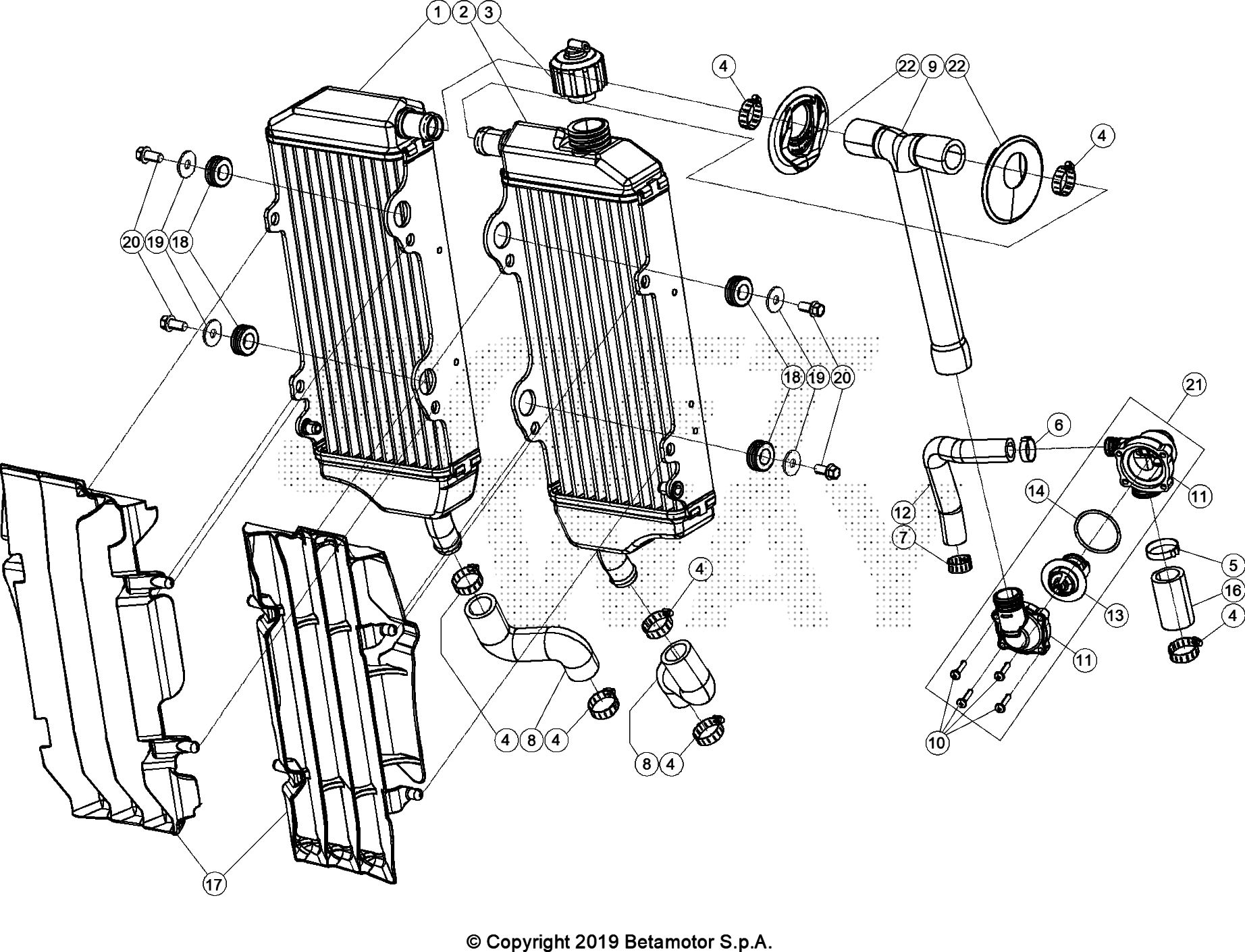

Drawing
Telaio > Sistema Di Raffreddamento

Valid for:

Rif.	Sku	Name	Price	Qty needed
3	037.39.021.00.00	TAPPO RADIATORE RR 4T	11,44 €	1
4	15.15240.000	FASCETTA /27	2,78 €	7
5	C07.16.005.00.00	FASCETTA D25	1,98 €	1
6	020.39.009.00.00	FASCETTA AUTOAGGRAPPANTE	3,95 €	1
7	15.15220.000	FASCETTA /22	2,78 €	1
8	037.39.013.00.00	TUBO RADIATORE RR 4T	6,28 €	2
9	037.39.009.00.00	TUBO TERMOSTATO RR 4T	24,64 €	1
10	031.39.017.50.00	VITE SPECIALE D.3,5X18	0,21 €	4
12	037.39.012.00.00	TUBO TERMOSTATO RR 4T	6,09 €	1
13	020.39.013.00.00	TERMOSTATO AD INSERTO RR 4T	33,61 €	1
14	10.66830.000	ANELLO OR .2	1,44 €	1
16	040.39.000.00.00	TUBO ACQUA RR 2T	1,90 €	1
18	035.39.006.00.00	SILENT BLOCK	1,38 €	4
19	27.43250.000	RONDELLA 6.24	0,10 €	4
20	11.47015.000	BULLONE 6.12 RS CH 8	0,34 €	2
21	037.39.006.80.00	TERMOSTATO RR 4T	53,97 €	1
22	037.39.015.00.00	TAPPO	2,76 €	2

To see all drawing, select a model
