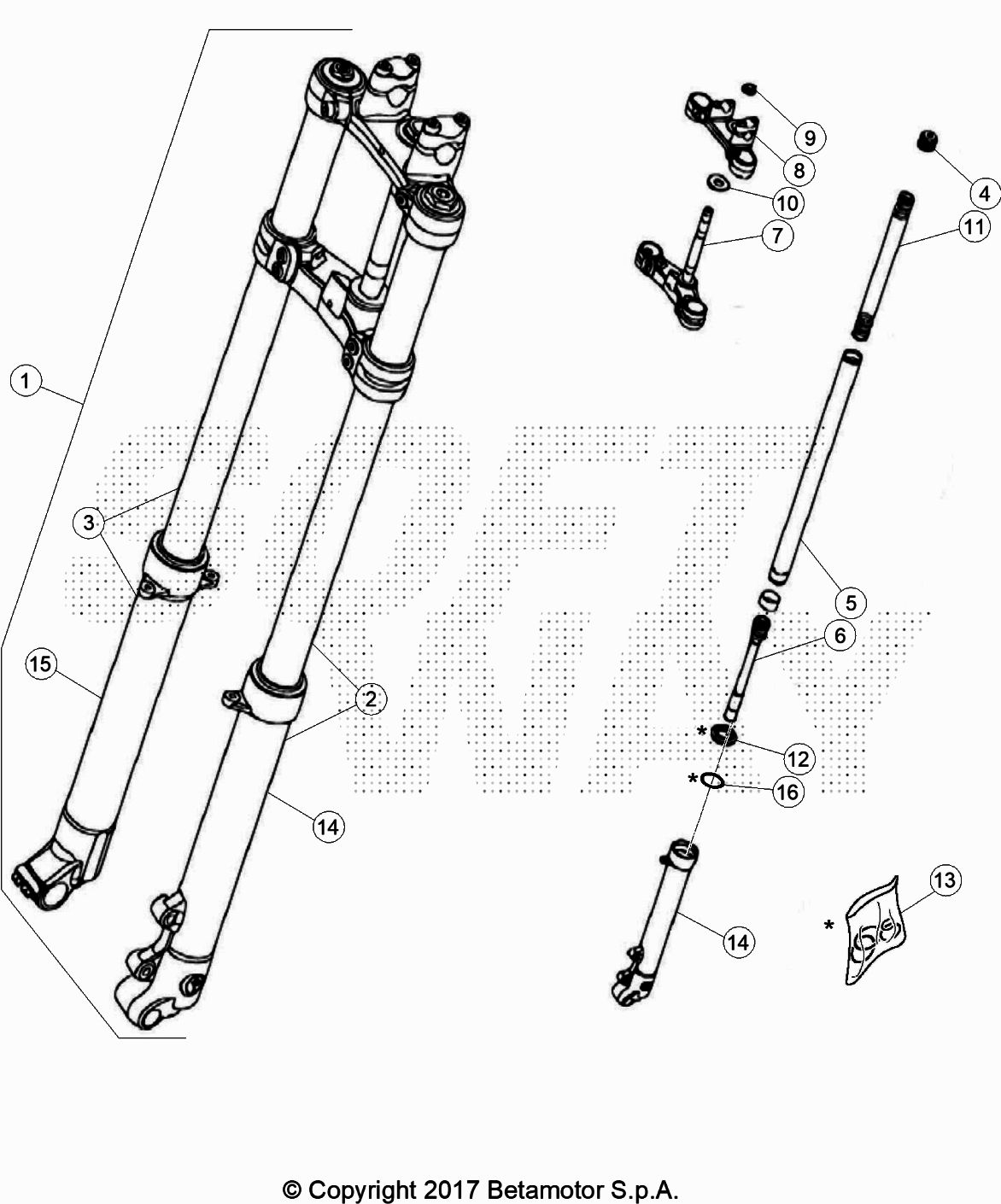

Drawing
Telaio > Forcella

Valid for:

Rif.	Sku	Name	Price	Qty needed
1	012.34.005.80.00	FORCELLA COMPLETA	1.053,53 €	1
2	012.34.032.80.00	GAMBA FORCELLA	498,44 €	1
3	012.34.031.80.00	GAMBA FORCELLA	498,44 €	1
4	012.34.024.00.00	TAPPO	33,09 €	2
5	012.34.025.00.00	TUBO	174,46 €	2
6	012.34.026.00.00	CARTUCCIA MECCANICA	155,89 €	2
7	012.34.029.00.00	PIASTRA DI STERZO COMPLETA	224,76 €	1
8	012.34.028.00.00	PIASTRA CANNOTTO	183,52 €	1
9	012.34.030.00.00	DADO	24,02 €	1
10	012.34.027.00.00	GHIERA CANNOTTO	23,02 €	1
11	012.34.021.00.00	MOLLA	54,67 €	2
12	012.34.033.00.00	PARAPOLVERE	14,05 €	2
13	012.34.020.82.00	KIT ANELLI TENUTA EVO 2T JUNIOR	16,60 €	1
14	012.34.023.00.00	FODERO	178,99 €	1
15	012.34.022.00.00	FODERO	176,73 €	1
16	012.34.034.00.00	ANELLO DI TENUTA	12,70 €	2

To see all drawing, select a model
