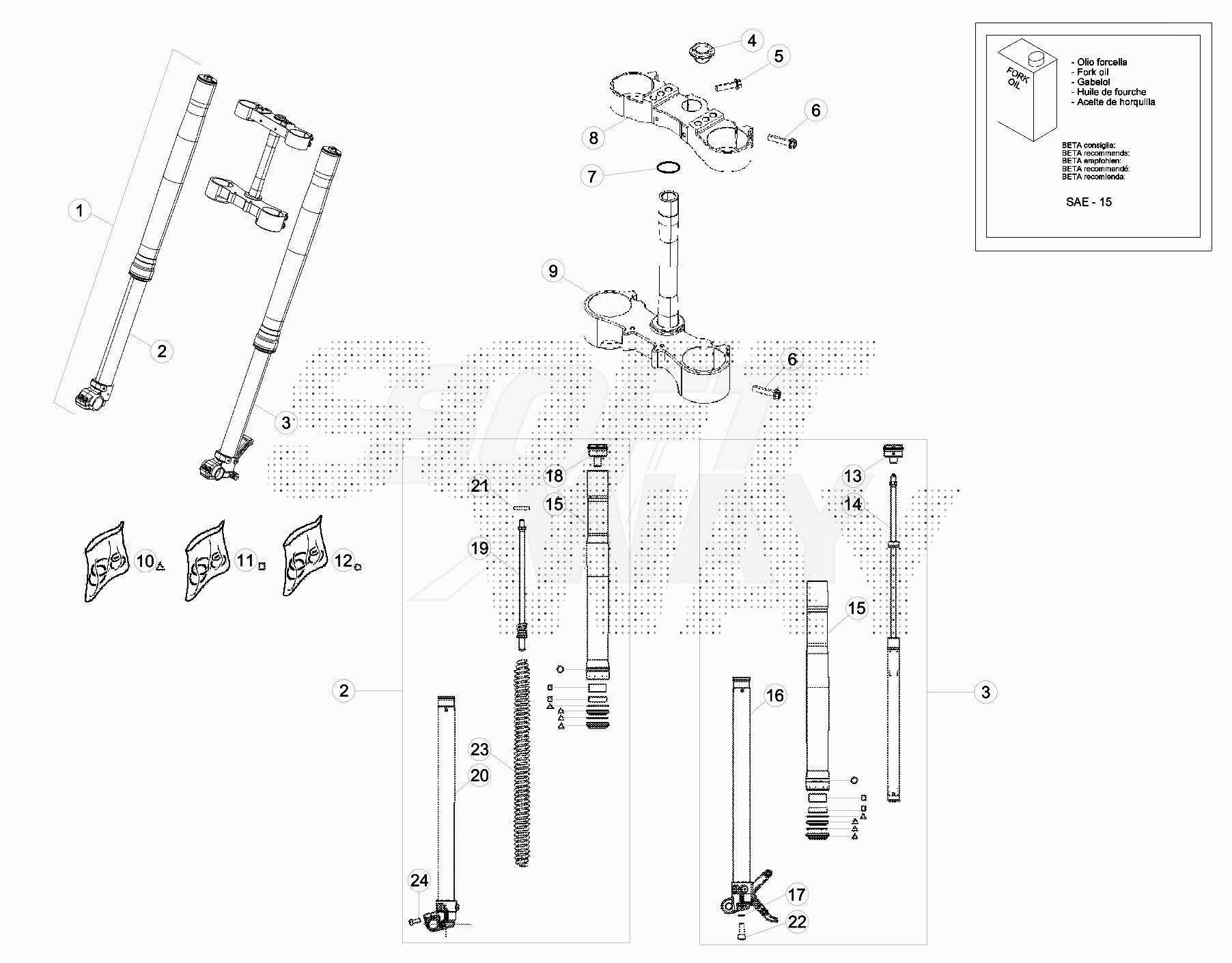

Drawing
Telaio > Forcella

Valid for:

Rif.	Sku	Name	Price	Qty needed
1	036.34.000.82.00	FORCELLA	1.962,41 €	1
2	036.34.003.80.00	GAMBA FORCELLA DESTRA	794,42 €	1
3	036.34.004.80.00	GAMBA FORCELLA SINISTRA	794,42 €	1
4	020.34.004.00.00	DADO 20X1,5 FORCELLA	17,35 €	1
5	11.55440.000	BULLONE 8.30 RS CH	0,84 €	1
6	11.55510.000	BULLONE 8.40 RS CH	1,96 €	1
7	10.66420.000	ANELLO OR ,22.3,53 NBR	0,59 €	1
8	036.34.002.42.59	PIASTRA DI STERZO SUPERIORE	192,54 €	1
9	036.34.001.80.59	PIASTRA DI STERZO INFERIORE COMPLETA	251,84 €	1
10	036.34.007.82.00	KIT TENUTE	87,03 €	1
11	036.34.011.82.00	KIT BOCCOLE	76,03 €	1
12	036.34.015.82.00	KIT ANELLI	14,70 €	1
13	036.34.017.00.00	TAPPO FORCELLA	81,96 €	1
14	036.34.018.00.00	CARTUCCIA IDRAULICA	385,52 €	1
15	036.34.019.00.00	FODERO	262,80 €	1
16	036.34.020.00.00	STELO	519,81 €	1
17	C19.43.007.00.00	RONDELLA IN RAME .17.1,5	4,64 €	1
18	036.34.022.00.00	TAPPO FORCELLA	75,41 €	1
19	036.34.023.00.00	PERNO	111,74 €	1
20	036.34.024.00.00	STELO	492,58 €	1
21	036.34.025.00.00	TAPPO	28,40 €	1
22	C24.24.046.00.00	VITE TCCE .30	2,14 €	1
23	036.34.021.00.00	MOLLA	84,02 €	1
24	31.63890.000	VITE BRUGOLA TCCE 8.20	0,76 €	1

To see all drawing, select a model
