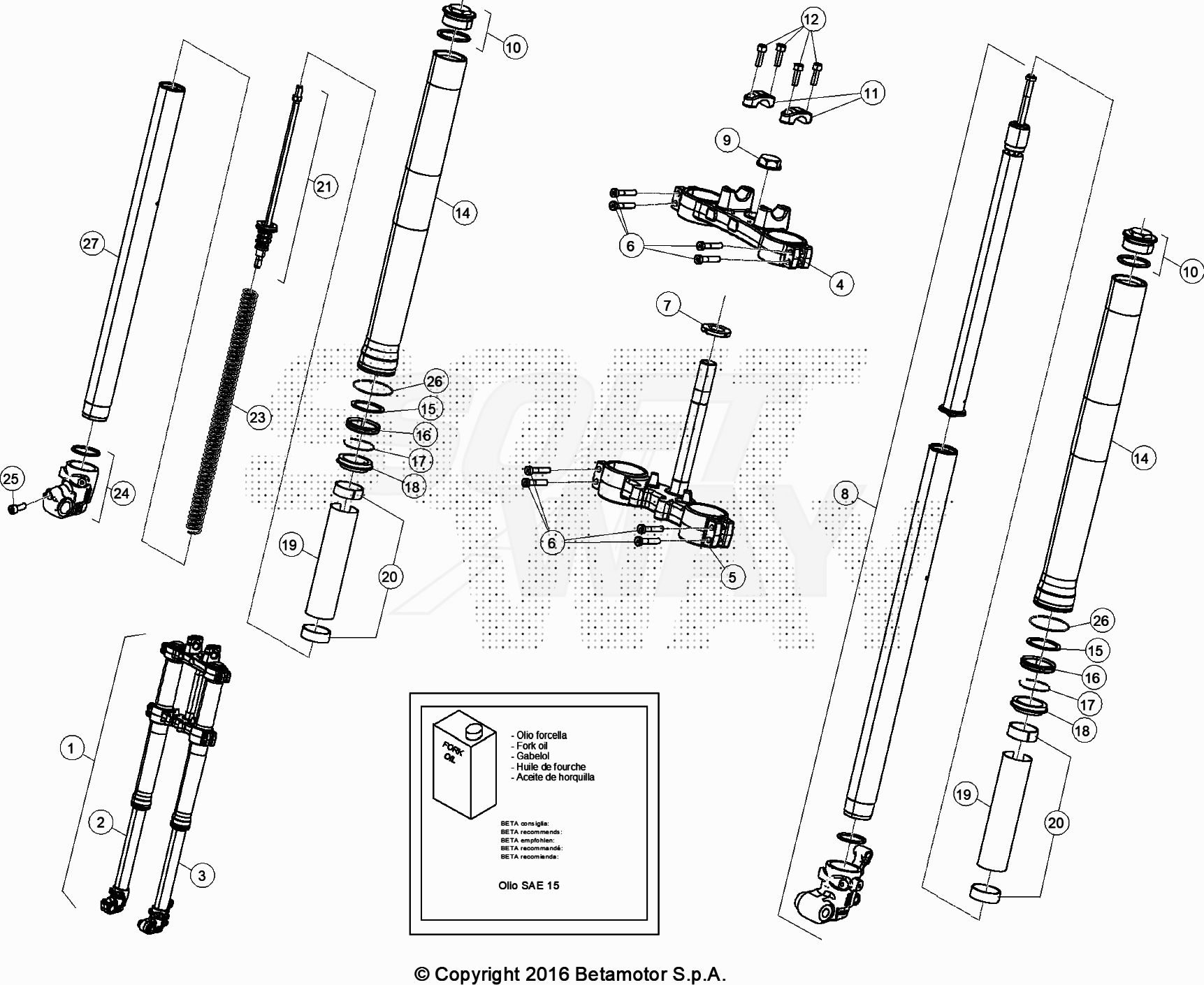

Drawing
Telaio > Forcella

Valid for:

Rif.	Sku	Name	Price	Qty needed
1	021.34.002.80.00	FORCELLA COMPLETA RR 4T LC	1.230,60 €	1
2	021.34.026.80.00	GAMBA FORCELLA	506,37 €	1
3	021.34.027.80.00	GAMBA FORCELLA	745,79 €	1
4	024.34.063.00.59	PIASTRA SUPERIORE	301,96 €	1
5	024.34.018.80.59	PIASTRA INFERIORE COMPLETA	360,64 €	1
6	11.55510.000	BULLONE 8.40 RS CH	1,96 €	8
8	021.34.024.80.00	CARTUCCIA IDRAULICA	641,27 €	1
9	024.34.040.00.00	DADO CANNOTTO	12,71 €	1
10	024.34.663.80.00	TAPPO COMPL. FORCELLA	43,71 €	2
11	024.34.064.00.59	CAVALLOTTO	28,73 €	2
12	31.63900.000	VITE BRUGOLA TCCE 8.25 Z.B.	6,43 €	4
14	024.34.666.00.04	FODERO	242,16 €	2
15	024.34.667.00.00	RONDELLA	20,30 €	2
16	024.34.668.00.00	ANELLO DI TENUTA	17,19 €	2
17	024.34.669.00.00	ANELLO D'ARRESTO	12,25 €	2
18	024.34.670.00.00	PARAPOLVERE	19,34 €	2
19	024.34.671.00.00	DISTANZIALE	12,61 €	2
20	024.34.672.82.00	BOCCOLA	61,37 €	2
21	024.34.673.80.00	CARTUCCIA MECCANICA FORCELLA	52,51 €	1
23	021.34.025.00.00	MOLLA	65,71 €	1
24	024.34.676.80.00	PIEDINO DX FORCELLA	176,46 €	1
25	31.63890.000	VITE BRUGOLA TCCE 8.20	0,76 €	1
26	024.34.664.00.00	ANELLO D'ARRESTO	8,44 €	2
27	024.34.683.00.00	TUBO DX COMPLETO FORCELLA	277,96 €	1

To see all drawing, select a model
