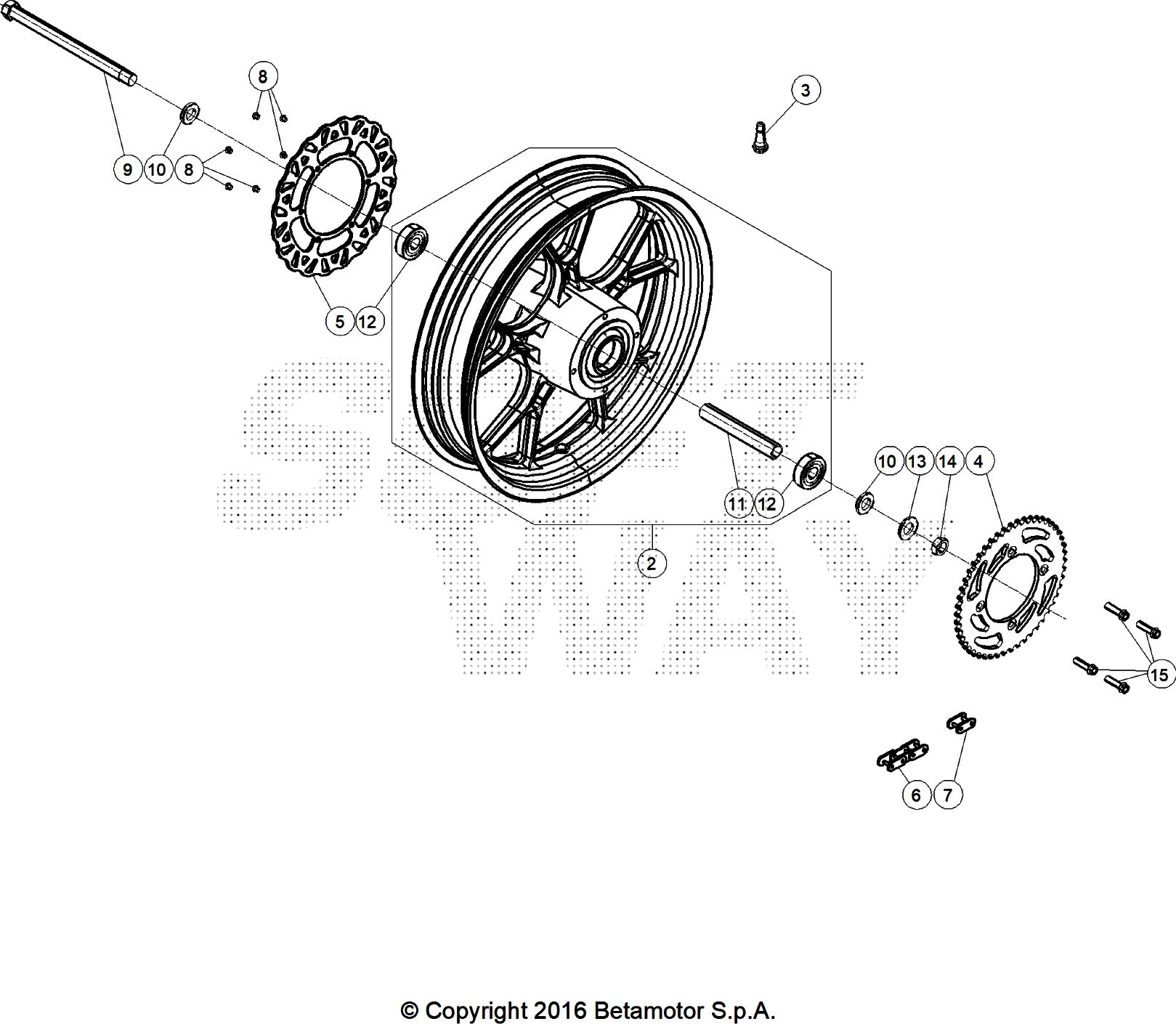

Drawing
Telaio > Ruota Posteriore

Valid for:

Rif.	Sku	Name	Price	Qty needed
2	046.42.011.80.59	CERCHIO BLACK	244,84 €	1
3	31.10000.000	VALVOLA ARIA TUBLESS TR-34	1,98 €	1
4	024.42.048.50.00	CORONA TRASMISSIONE SECONDARIA Z60	33,99 €	1
5	024.42.101.00.00	DISCO FRENO POST. TRACK D.220	56,11 €	1
6	046.42.020.00.00	CATENA 1/2 1/4 P.138	25,86 €	1
7	046.42.023.00.00	MAGLIA FALSA	1,07 €	1
8	31.30750.000	VITE TBIB 6.16	1,16 €	6
9	25.55621.000	PERNO RUOTA POST. RR-50	30,30 €	1
10	13.85729.000	DISTANZ. MOZZO POST. MOTARD TRACK	8,97 €	2
11	046.42.008.00.00	DISTANZIALE	6,12 €	1
12	12.97005.000	CUSCINETTO .47.14 RS PER MOZZI	36,14 €	2
13	27.71210.000	RONDELLA ,2 . . 3	2,54 €	1
14	13.29600.000	DADO .1,5	5,75 €	1
15	C24.91.003.00.00	VITE ISO -1 M8 X - T40 .9	0,71 €	4

To see all drawing, select a model
