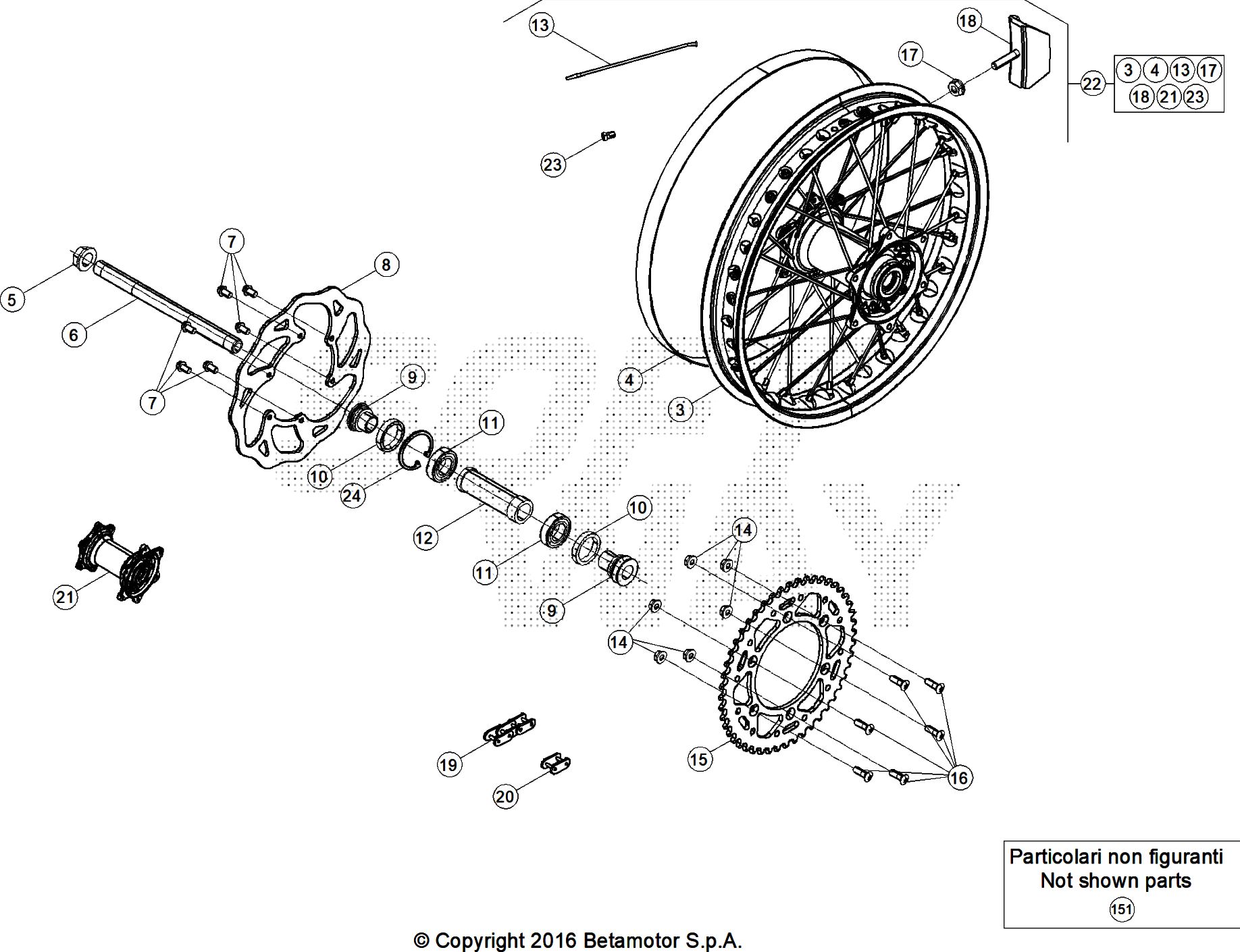

Drawing
Telaio > Ruota Posteriore

Valid for:

Rif.	Sku	Name	Price	Qty needed
3	036.42.007.00.59	CERCHIO .1,85-36	321,27 €	1
5	049.42.007.00.00	DADO	4,25 €	1
6	049.42.006.00.00	PERNO RUOTA	46,93 €	1
9	049.42.005.00.00	DISTANZIALE	10,65 €	2
10	10.66000.000	ANELLO PARAOLIO .47.7	3,48 €	2
11	020.42.004.00.00	CUSCINETTO .47.12	12,30 €	2
12	031.42.005.00.00	DIST.INTERNO RUOTA POST. RR4T	10,47 €	1
14	13.17123.000	DADO M8 FLANGIATO CH.13 (DIN )	0,92 €	6
15	031.42.047.00.00	CORONA Z.50	87,99 €	1
16	31.96827.000	VITE SPEC.TGS TORXS M8X26 .9 DACROMET	0,76 €	6
17	13.17120.000	DADO M8 FLANGIATO CH.13 (ZIGRINATO)	0,65 €	1
20	035.42.005.00.00	MAGLIA	12,58 €	1
21	031.42.014.80.00	MOZZO POST.C/CUSC.E DIST.INT.RR4T	332,60 €	1
22	041.42.003.00.59	RUOTA POSTERIORE BLACK RR 2T	648,76 €	1
24	C01.26.001.00.00	ANELLO D'ARRESTO PER D.47X1,75 UNI	0,59 €	1
151	031.42.028.00.00	CORONA Z.45	46,69 €	1

To see all drawing, select a model
