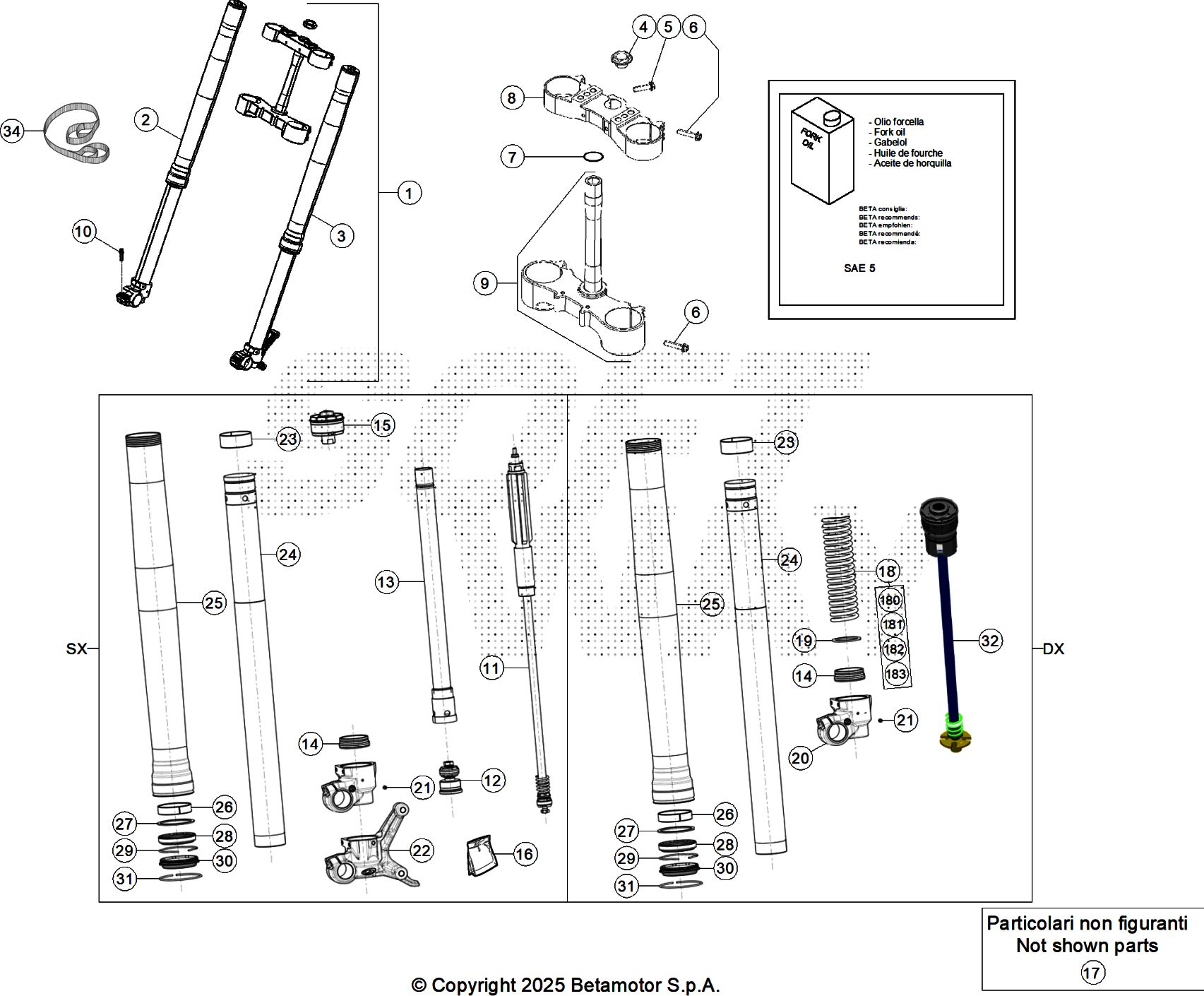

Drawing
Telaio > Forcella

Valid for:

BETA > ENDURO RR 300 2T X-PRO > 2025

Rif.	Sku	Name	Price	Qty needed
1	040.34.079.80.00	FORCELLA COMPLETA	2.436,08 €	1
2	040.34.073.80.00	GAMBA FORCELLA DESTRA RR 2T -300 X-PR	1.018,16 €	1
3	040.34.074.80.00	GAMBA FORCELLA SINISTRA RR 2T -300 X-	1.115,79 €	1
4	020.34.004.00.00	DADO 20X1,5 FORCELLA	17,35 €	1
5	31.64070.000	VITE FLANGIATA 8X25 CH10	0,76 €	1
6	11.55510.000	BULLONE 8.40 RS CH	1,96 €	8
7	10.66420.000	ANELLO OR ,22.3,53 NBR	0,59 €	1
8	026.34.036.42.59	PIASTRA DI STERZO	214,70 €	1
9	040.34.069.80.59	PIASTRA DI STERZO BLACK	252,81 €	1
10	031.34.072.00.00	VITE M8 X - 8.8	0,38 €	4
11	040.34.077.00.00	GRUPPO ESTENSIONE	213,74 €	1
12	040.34.078.00.00	GRUPPO COMPRESSIONE	138,80 €	1
13	037.34.111.00.00	TUBO	61,74 €	1
14	020.34.313.00.00	GRUPPO CILINDRO APPOGGIO CANNA + ORING	29,88 €	2
15	040.34.050.00.00	TAPPO FORCELLA	130,24 €	1
16	037.34.116.82.00	RONDELLA - KIT	20,36 €	1
17	031.34.088.00.00	SFIATO	8,00 €	2
18	040.34.075.00.00	MOLLA K 8,4 N/MM	57,21 €	1
19	040.34.041.00.00	RONDELLA	10,57 €	1
20	037.34.108.00.00	PIEDE FORCELLA	107,67 €	1
21	020.34.308.00.00	GRANO SU PIEDINI	2,16 €	2
22	037.34.109.00.00	PIEDE FORCELLA	125,61 €	1
23	020.34.320.00.00	BOCCOLA D.49/47 L20	10,05 €	2
24	037.34.107.00.00	STELO	184,72 €	2
25	040.34.070.00.00	FODERO	232,40 €	2
26	031.34.020.00.00	BOCCOLA D52/48 L12	14,43 €	2
27	020.34.318.00.00	DISTANZIALE	6,55 €	2
28	020.34.317.00.00	PARAOLIO	22,57 €	2
29	020.34.316.00.00	SEEGER D.58,45	7,63 €	2
30	020.34.315.00.00	RASCHIAPOLVERE	18,73 €	2
31	026.34.364.00.00	ANELLO D'ARRESTO	5,39 €	2
32	037.34.110.00.00	CARTUCCIA	220,08 €	1
34	037.46.049.00.00	CINGHIA	5,09 €	1
180	037.34.112.00.00	MOLLA K 9,6 N/MM	59,11 €	1
181	037.34.113.00.00	MOLLA K N/MM	119,22 €	1
182	040.34.076.00.00	MOLLA K 9 N/MM	119,01 €	1
183	041.34.053.00.00	MOLLA K 8 N/MM	60,01 €	1

To see all drawing, select a model

BETA > ENDURO RR 300 2T X-PRO > 2025
