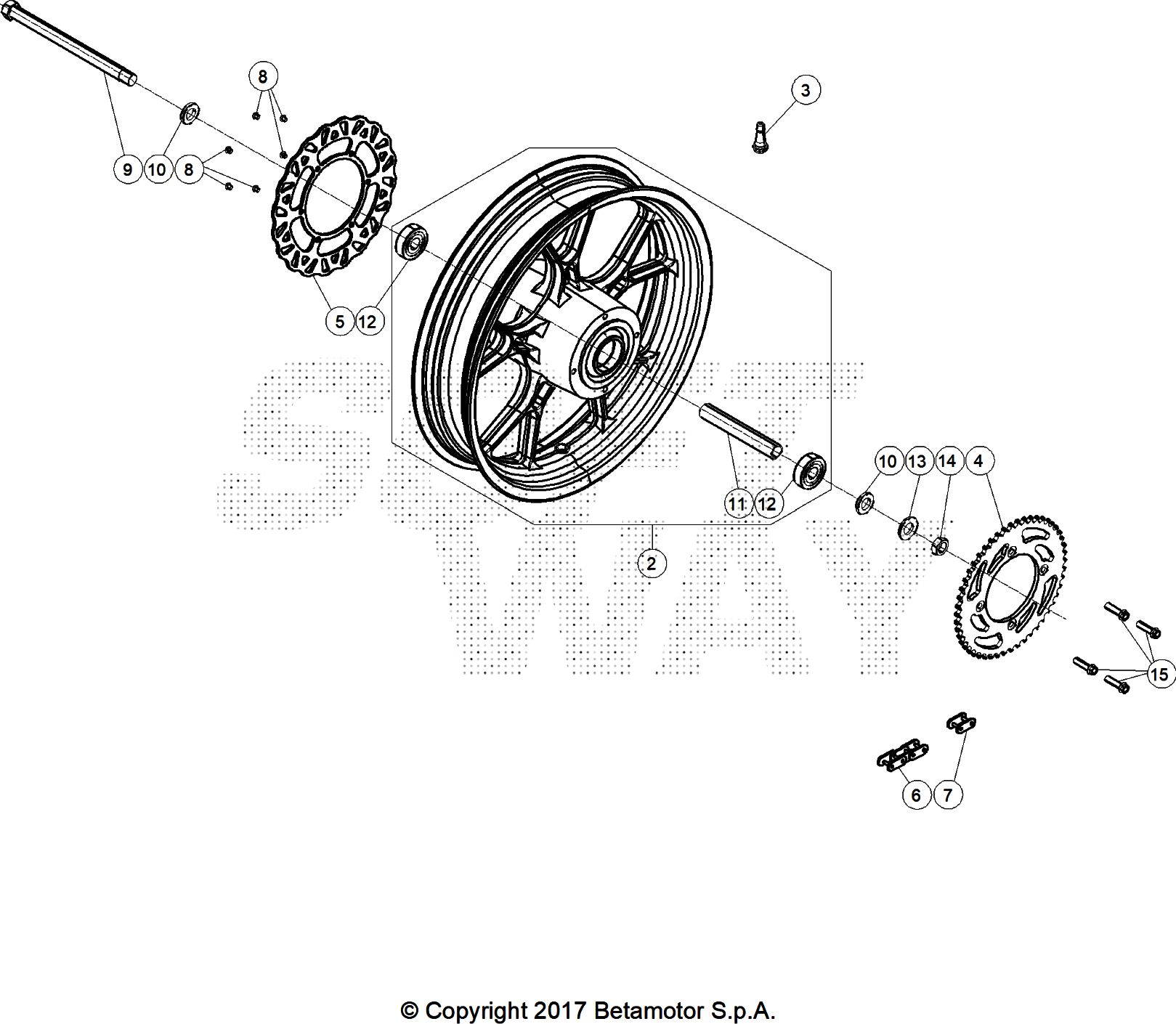

Drawing
Telaio > Ruota Posteriore

Valid for:

Rif.	Sku	Name	Price	Qty needed
2	051.42.002.80.59	CERCHIO BLACK	250,80 €	1
3	31.10000.000	VALVOLA ARIA TUBLESS TR-34	1,98 €	1
4	051.42.001.00.00	CORONA TRASMISSIONE SECONDARIA Z57	87,36 €	1
5	024.42.101.00.00	DISCO FRENO POST. TRACK D.220	56,11 €	1
6	021.42.017.00.00	CATENA 1/2.5/16 P-136	66,39 €	2
7	021.42.018.00.00	MAGLIA	10,16 €	2
7	051.42.008.00.00	MAGLIA	1,13 €	2
8	31.30750.000	VITE TBIB 6.16	1,16 €	6
9	021.42.003.00.00	PERNO RUOTA POSTERIORE VEM125	32,11 €	1
10	021.42.011.00.00	DISTANZIALE RUOTA POST.DX SX VEM125 MOT.	3,87 €	2
11	046.42.008.00.00	DISTANZIALE	6,12 €	1
12	12.97005.000	CUSCINETTO .47.14 RS PER MOZZI	36,14 €	2
13	27.71210.000	RONDELLA ,2 . . 3	2,54 €	1
14	13.29600.000	DADO .1,5	5,75 €	1
15	C24.91.003.00.00	VITE ISO -1 M8 X - T40 .9	0,71 €	4

To see all drawing, select a model
